Curtain Control Circuit

Published:2012/11/21 2:07:00 Author:muriel | Keyword: Curtain, Control Circuit | From:SeekIC

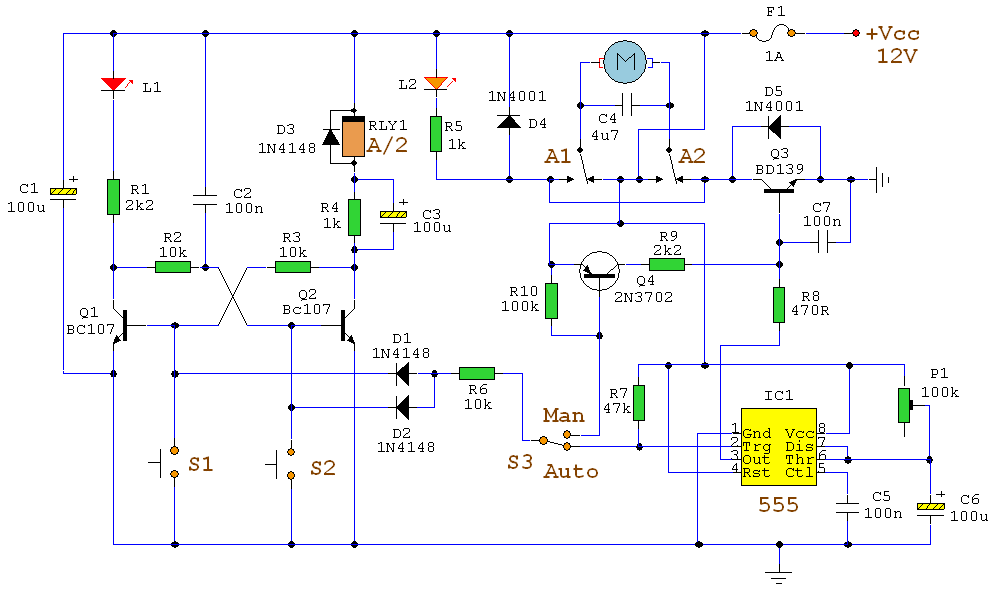

This hybrid circuit uses a mixture of transistors, an IC and a relay and is used to automatically open or close a pair of curtains. Using switch S3 also allows manual control, allowing for curtains to be left only partially open or closed. The circuit controls a motor which is attached to a simple pulley mechanism, to move the curtains. I first started this circuit over 20 years ago and apart from now using metal gears, very little has changed.
