Controlling a motor in three places

Published:2011/7/10 22:21:00 Author:Lucas | Keyword: Controlling motor , in three places | From:SeekIC

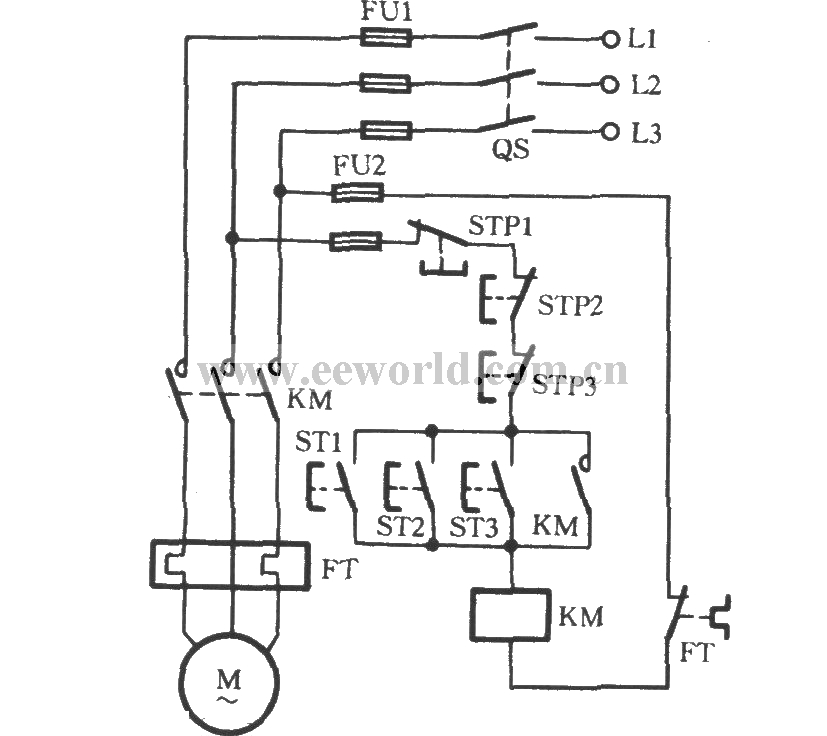

It is often referred as multi-point control in two or more than two locations to control of a motor (action). The circuit shown as the chart can realize controlling a motor in three locations. In the figure, ST is the start button, and STP is stop button. ST1, STP2 are the control buttons in the first place; ST2, STP2 are the control buttons in the second place; ST3, STP3 are the control buttons in the third place. The circuit connecting tips for realizing multi-point control: start buttons are connected in parallel, and stop buttons are connected in series.
