Complementary oscillator trigger circuit

Published:2011/6/27 7:26:00 Author:Christina | Keyword: Complementary oscillator, trigger circuit | From:SeekIC

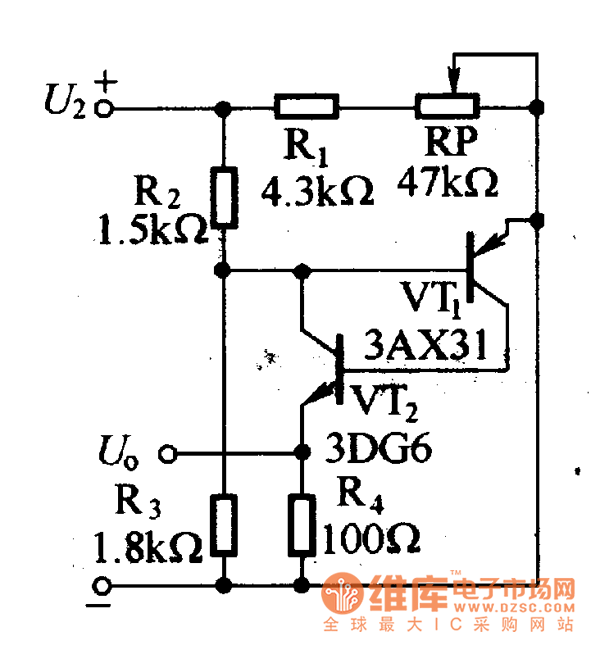

The circuit is as shown in the figure. The positive feedback loop is composed of the VT1 and VT2 to produce the self-excited oscillation triggering pulse, you can change the cycle of the self-excited oscillation triggering pulse by adjusting RP, and this circuit plays the role of phase shifting. Complementary oscillator trigger circuit
