Combustible gas alarm circuit

Published:2014/2/20 20:13:00 Author:lynne | Keyword: Combustible gas alarm circuit, | From:SeekIC

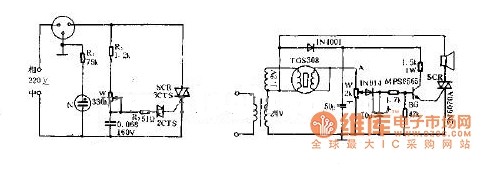

Combustible gas alarm circuit shown in Figure: RC regulator is controlled phase triac trigger voltage regulator circuit. The installation of the circuit ground wire in the socket R, and N as neon leakage alarm. When the electrical plug in the socket when the leakage but not short to ground potential, neon is lit, warning of safety and inspection and troubleshooting.
