Channel_capacitance

Published:2009/7/23 22:06:00 Author:Jessie | From:SeekIC

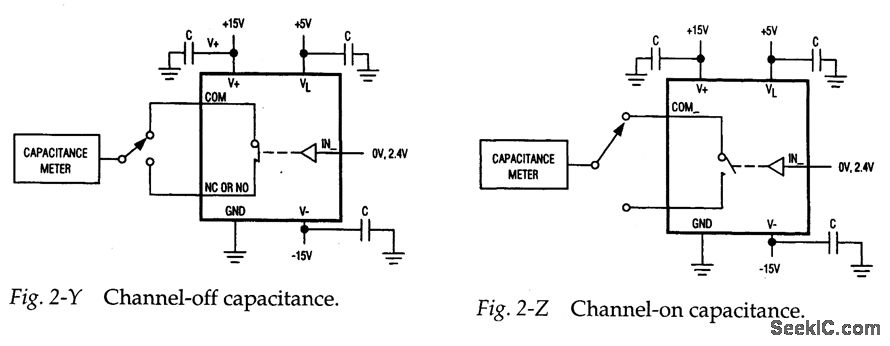

Figures 2-Y and 2-Z show test circuits for measuring channel capacitance with the channel switch open and closed. Typical capacitance is 12 pF with the channel open and 39 pF when the channel is closed.
