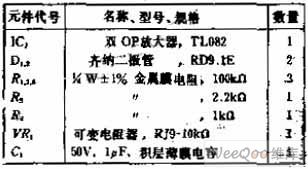

Changing Rate Control Circuit of Variable Converting Speed

Published:2011/6/14 13:00:00 Author:Michel | Keyword: Variable Converting Speed, Changing Rate Control | From:SeekIC

Circuit's FunctionsThis type of circuit uses a certain rate to limit rapid changing signal which can change electrical signals into part of mechanical signal output circuit.Converting speed depends on integral constants and if conversion speed is required to be variableand it usually comes out by changing integrating resistor.This circuit parts the integral input voltgae to alter time constants. Circuit's Work PrincipleOP amplifier A1 is voltage comparator,A1 is saturated around +VO when the positive potential is input because reverse phase input grounds.
