CYRO__TEMPERATURE__CONTROL

Published:2009/7/21 21:19:00 Author:Jessie | From:SeekIC

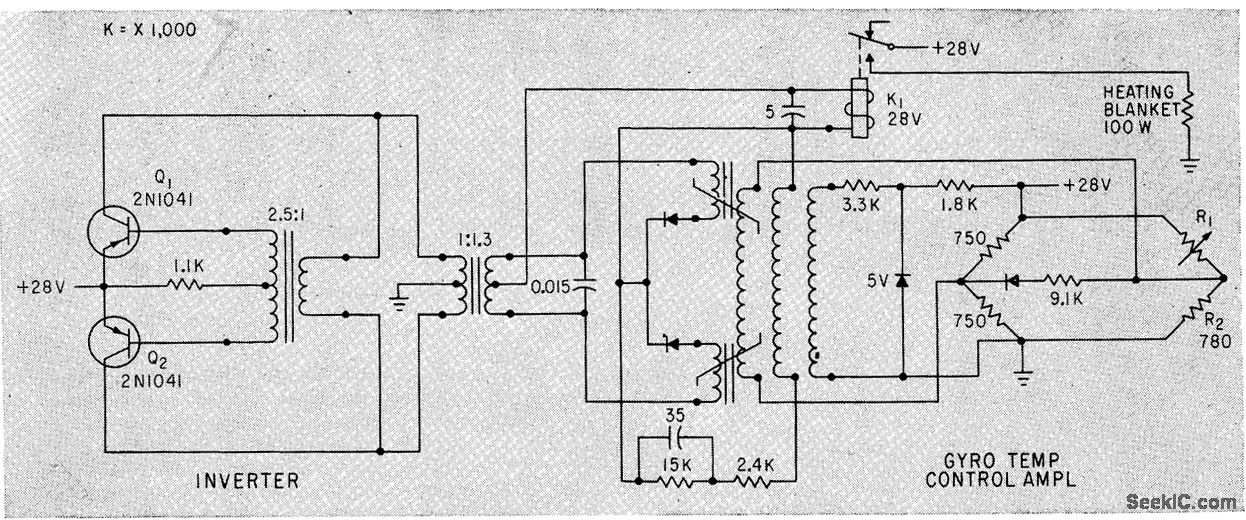

Regulates temperature to 0.5°F by sensing differences between gyro-mounted temperature-sensitive resistor R1 and fixed resistor R2 in bridge. Magnetic amplifier for bridge operates relay K1 to energize gyro heater when temperature is low, -R. E, King and H. Low, Solid-State Guidance For Able-Series Rockets, Electronics, 33：5, p 60-63.
