CRT_CONTROL

Published:2009/7/15 21:34:00 Author:Jessie | From:SeekIC

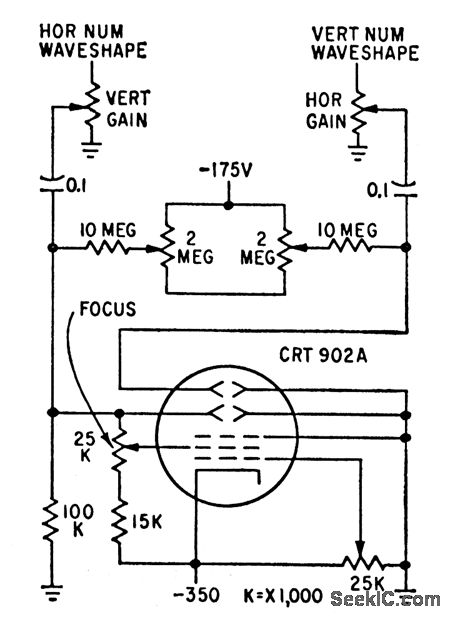

Takes waveforms from gates and applies them to deflection electrodes of 2-inch crt to create numeral-forming Lissajous patterns.-R. L. White, Forming Hand-written-Like Digits on CRT Display, Electronics, 32:11, p 138.140.
