CONTINUOUS_PHASE_CONTROL

Published:2009/7/20 3:16:00 Author:Jessie | From:SeekIC

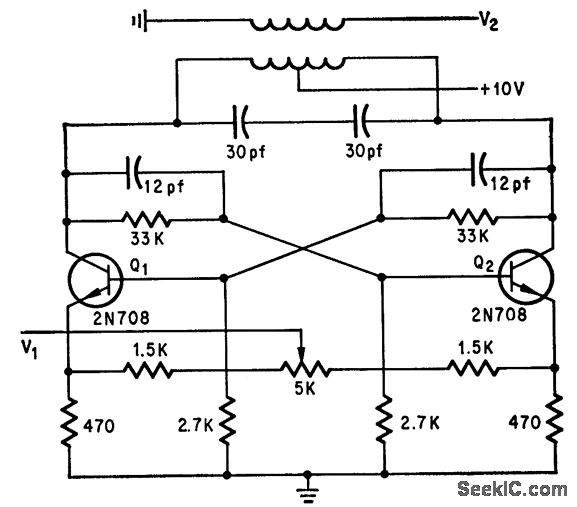

Potentiometer changes phase relationship between synchronizing voltage V1 and output voltage V2, without affecting amplitude of output from free-running mvbr.-S. Tesic, Multivibrator Provides Continuous Phase Control, Electronics, 39:15, p 102-103.
