COMMON_MODE_VOLUME_AND_TONE_CONTROL

Published:2009/7/6 5:48:00 Author:May | From:SeekIC

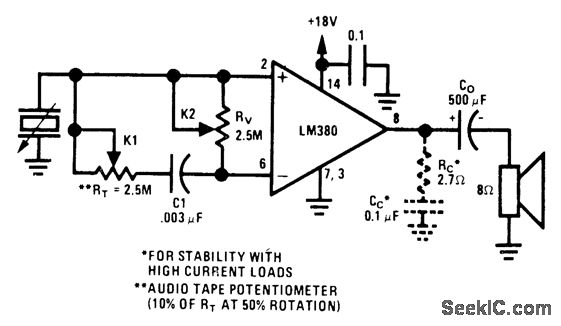

Eliminates attenuation of signal by conventional voltage-divider type of volume control and gives maximum input impedance. Used with transducers having high source impedance, but will also serve with low-impedance transducers.- Audio Handbook, National Semiconductor, Santa Clara, CA, 1977, p 4-21-4-28.
