CLICKLESS_LEVEL_CONTROL_ATTENUATOR

Published:2009/6/29 23:47:00 Author:May | From:SeekIC

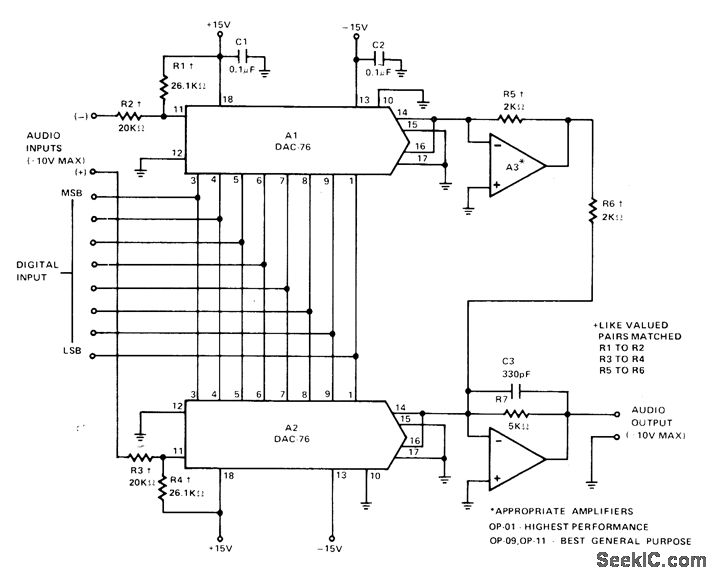

Uses two Precision Monolithics DAC-76 D/A converters to eliminate gain-change transients while providing exponential control of audio signal level. Maximum (all 1s) gain is unity from either input to output, while differential input to output gain is +6 dB. Control range is 78 dB.-W. Jung and W. Ritmanich, Audio Appli-cations for the DAC.76 Companding D/A Converter, Precision Monolithics, Santa Clara, CA, 1977, AN-28, p 4
