CHARGE_PUMP_GENERATING_GATE_DRIVE

Published:2009/7/17 2:13:00 Author:Jessie | From:SeekIC

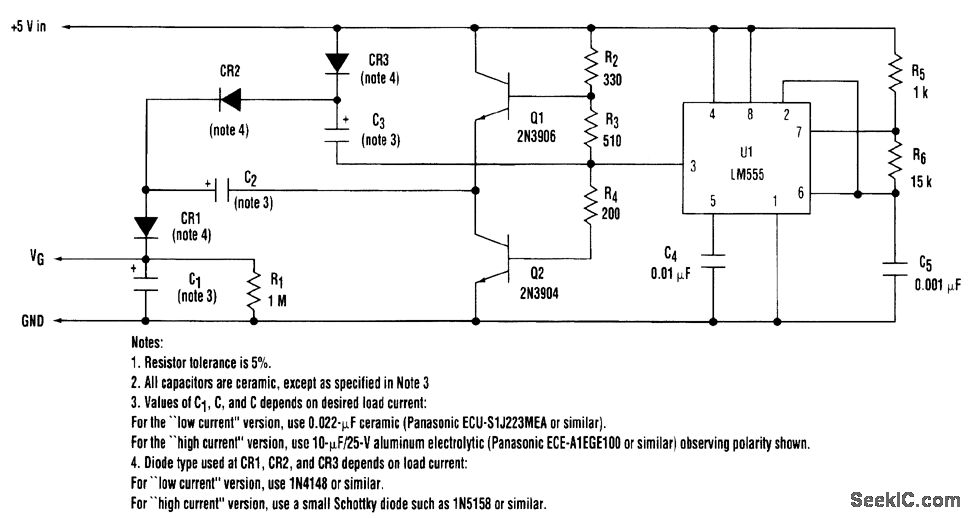

A charge pump built as a voltage tripler can provide just the right amount of voltage needed for gate drive in a 5-V system.
