CHARACTER_GENERATOR_DEFLECTION_SWITCH

Published:2009/7/16 21:50:00 Author:Jessie | From:SeekIC

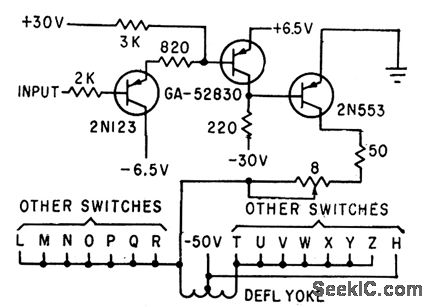

Coarse deflection system uses 32 identical power transistor circuits in switching configuration to drive low-inductance main deflection yoke. Half of these control X deflection to give 16 discrete positions, and the remainder serve for Y deflection.-K. E. Perry and E. J. Aho, Radar-Computer Display Traces Alphanumeric Characters,Electronics, 34:26, p 75-79.
