Blown fuse flash circuit

Published:2011/11/30 21:21:00 Author:May | Keyword: Blown fuse, flash | From:SeekIC

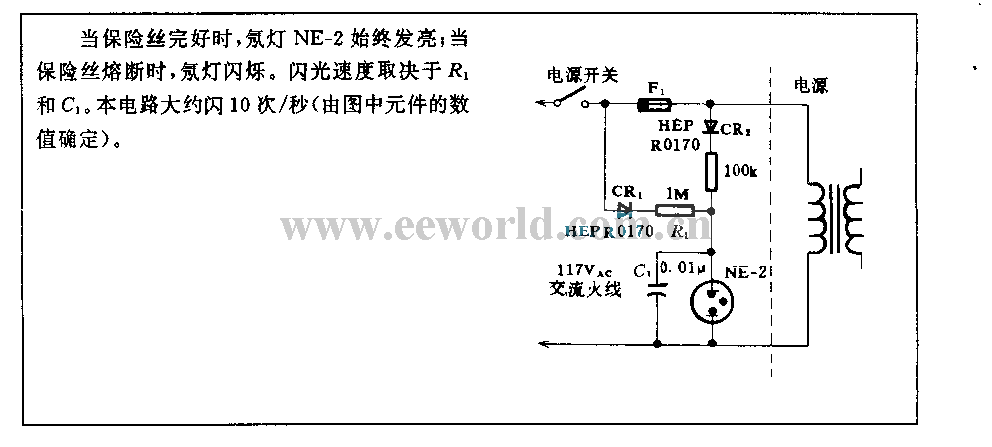

When fuse is unharmed, neon light NE-2 always shines; when fuse is blown, neon light flashes. Flash speed depends on R1 and C1. This circuit flashes 10 times/s ( it depens on numerical value of components in the diagram) .
