BRIDGE_WITH_AGC_FOR_ON_DIODE

Published:2009/7/16 2:40:00 Author:Jessie | From:SeekIC

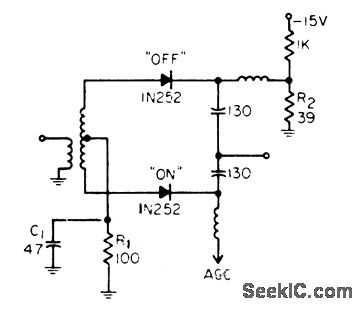

Input signal is applied in push-pull to two diodes, then combined by two capacitors. Reduction of agc bias increases attenuation of signal by bridge.-W. A Rheinfelder, Designing Automatic Gain Control Systems, EEE, 13:1, p 53-57.
