BODY_TEMPERATURE_TRANSISTOR_THERMOMETER

Published:2009/7/21 21:17:00 Author:Jessie | From:SeekIC

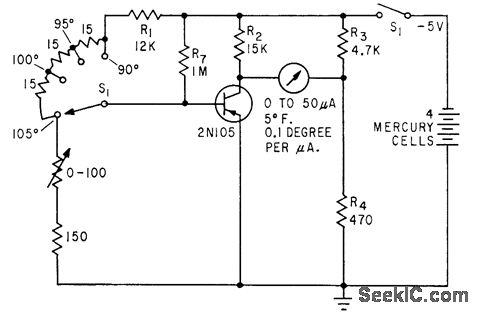

Covers range of 90°to 105°F in three steps, with , temperature indicated on meter that measures base bias of germanium transistor, for which bias varies linearly with temperature.-L. E. Barton, Measuring Temperature with Diodes and Transistors, Electronics, 35:18, p 38-40.
