BLENDER_CONTROL_CIRCUIT

Published:2009/6/23 21:52:00 Author:Jessie | From:SeekIC

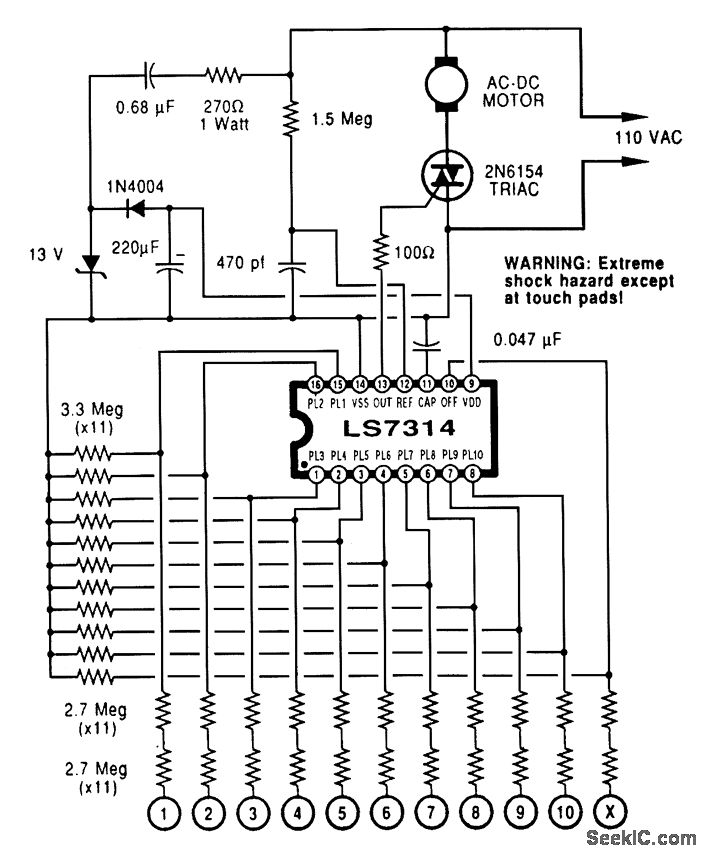

A 10-speed touch-control blender circuit that uses the low-cost LS314 chip by LSI Systems. The 11th touch pad is for power off.
