BIDIRECTIONAL_SWITCH

Published:2009/7/9 0:42:00 Author:May | From:SeekIC

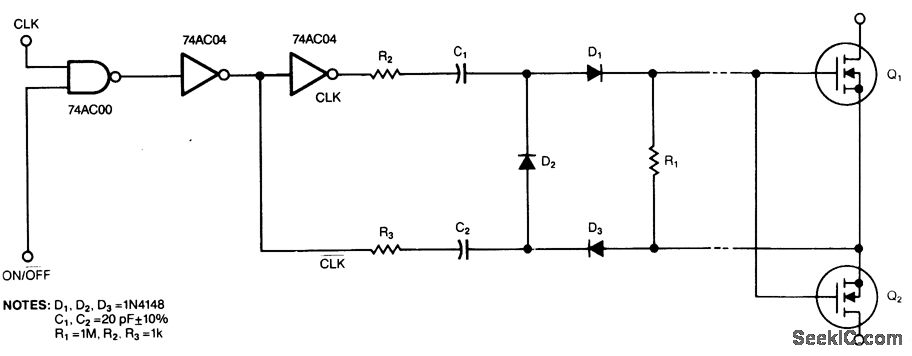

Using voltage doublers, this simple switch circuit uses a clock signal and a control signal to switch MOSFETs.
