BASIC_PIN_DIODE_RF_SWITCH

Published:2009/7/14 1:59:00 Author:May | From:SeekIC

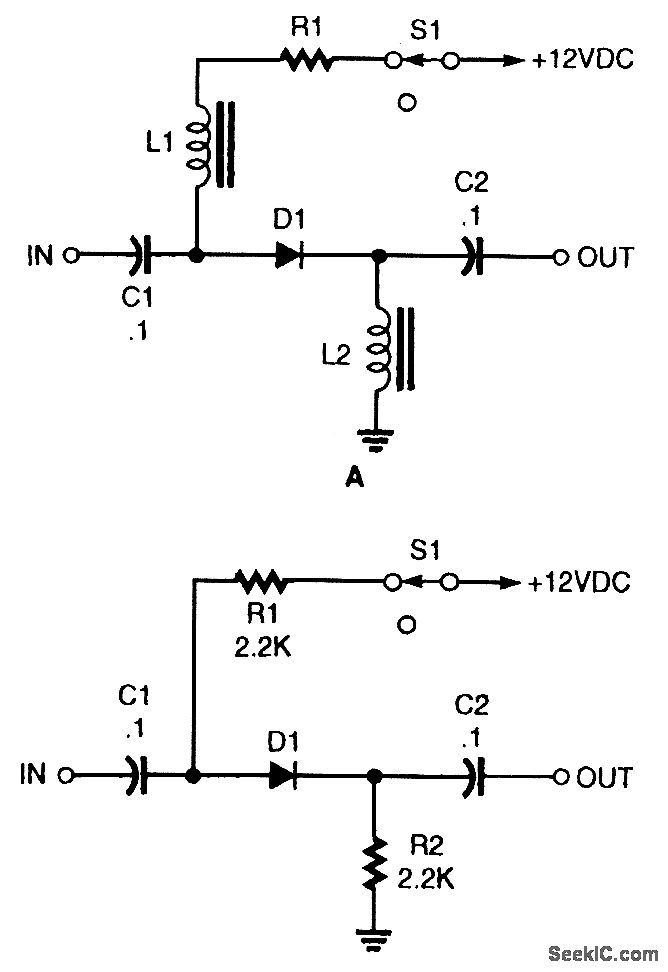

D1 is a pin diode （MV3404） used as a SWitch,with dc bias supplied via R1. L1 and L2 are RF chokes An alternative approach eliminating the RF chokes is also shown
