BASIC_GTO_FOR_POWER_SUPPLY_OVERLOADS

Published:2009/7/21 10:30:00 Author:Jessie | From:SeekIC

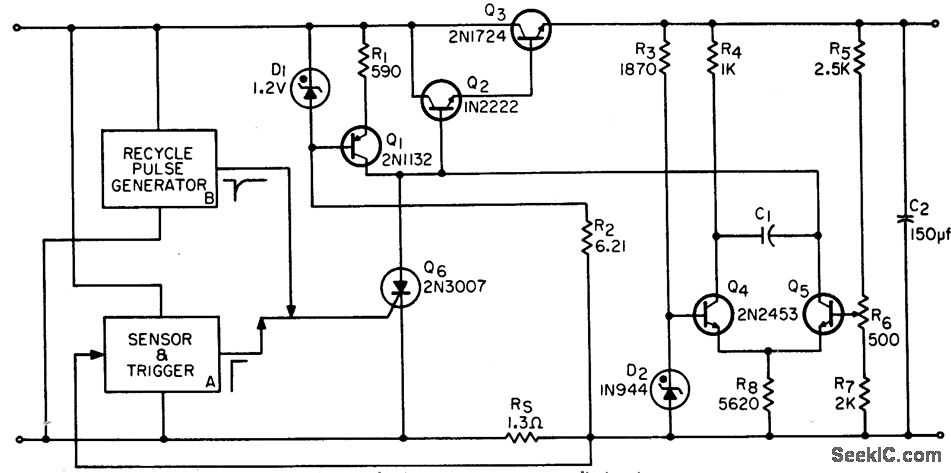

Gate-turnoff scr (GTO) provides superior overload protection for d-c power supplies. Chief advantages are elimination of tum-on current surges, switching off within 30 microsec of overload, automatic load sensing, and reset, and no appreciable effect on power supply efficiency.-W. C. Mosley, GTO Protection Circuitry for DC Supplies, EEE, 12:11, p 57-59.
