BA8206 fan single chip microcomputer integrated circuit

Published:2011/6/13 20:47:00 Author:Christina | Keyword: fan, single chip, microcomputer, integrated circuit | From:SeekIC

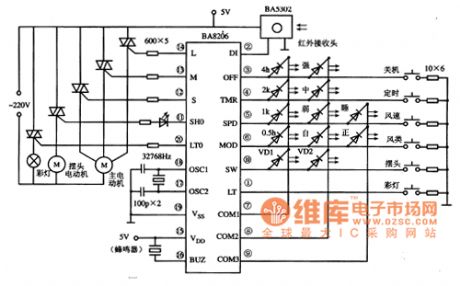

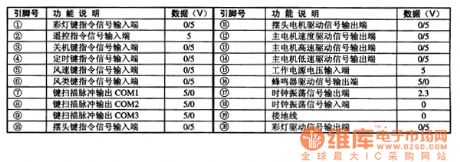

The BA8206 is designed as one kind of fan single chip microcomputer integrated circuit that is produced by the Toyo company, and it can be used in the program control system of various types of fan. The BA8206 uses the 20-pin dual-row DIP package, the pin functions and data are as shown in table 1, the typical application circuit is as shown in figure 1. The operating voltage range of this IC is 3-5V, the quiescent current is 500μA, the SCR trigger output current is 10mA. Table 1 The pin functions and data of the BA8206 Figure 1 The typical application circuit of theBA8206
