BA8105(electronic fan) infrared remote control receiving control circuit

Published:2011/6/9 8:50:00 Author:Lena | Keyword: infrared, remote control, receiving | From:SeekIC

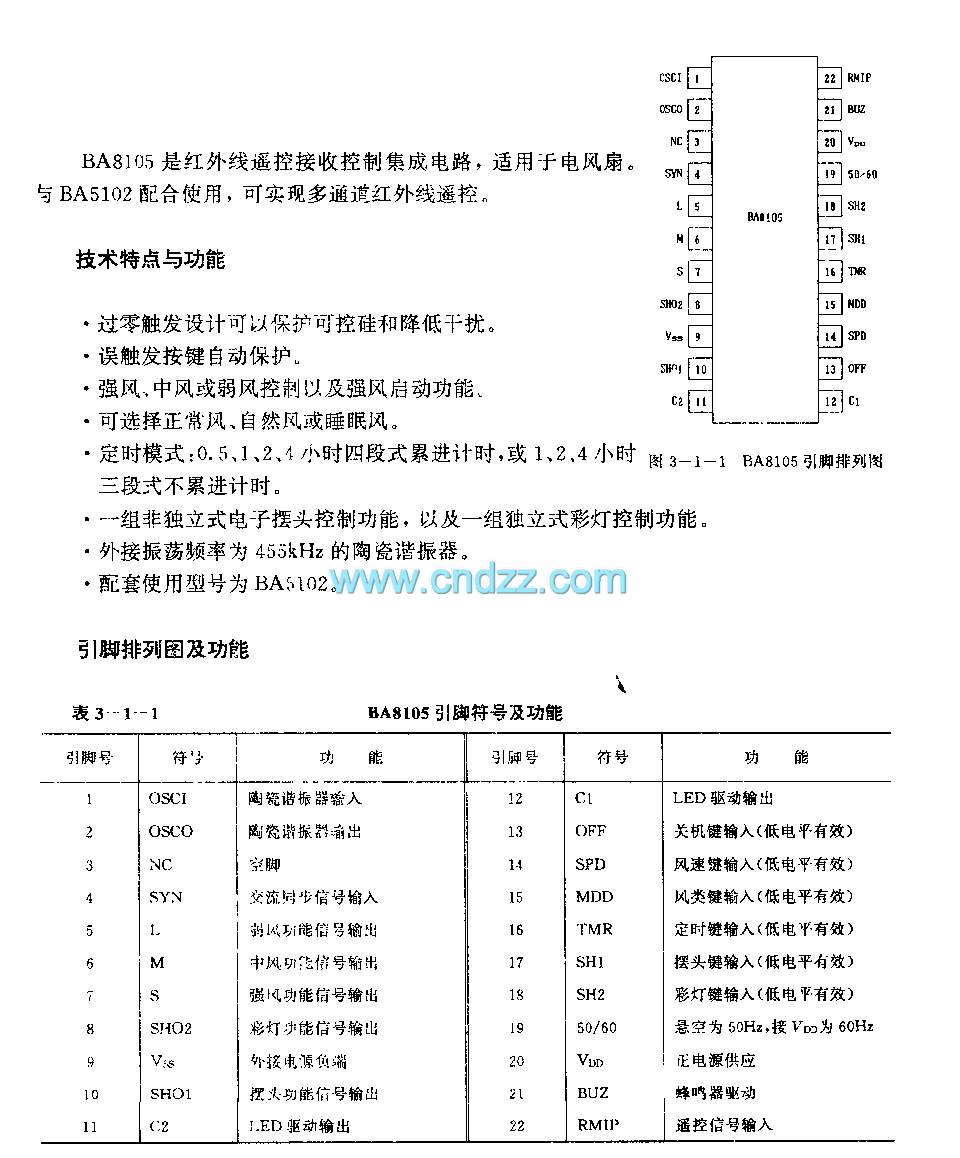

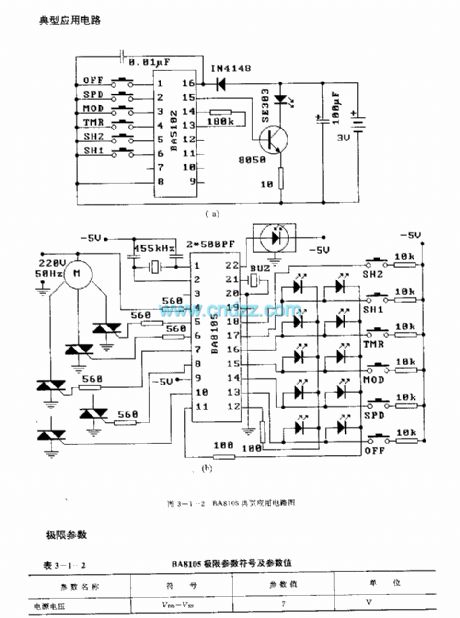

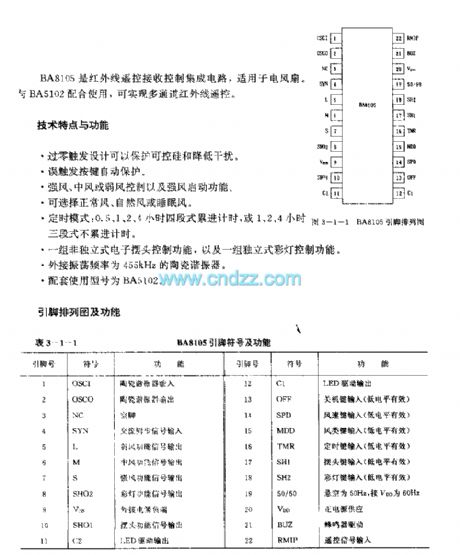

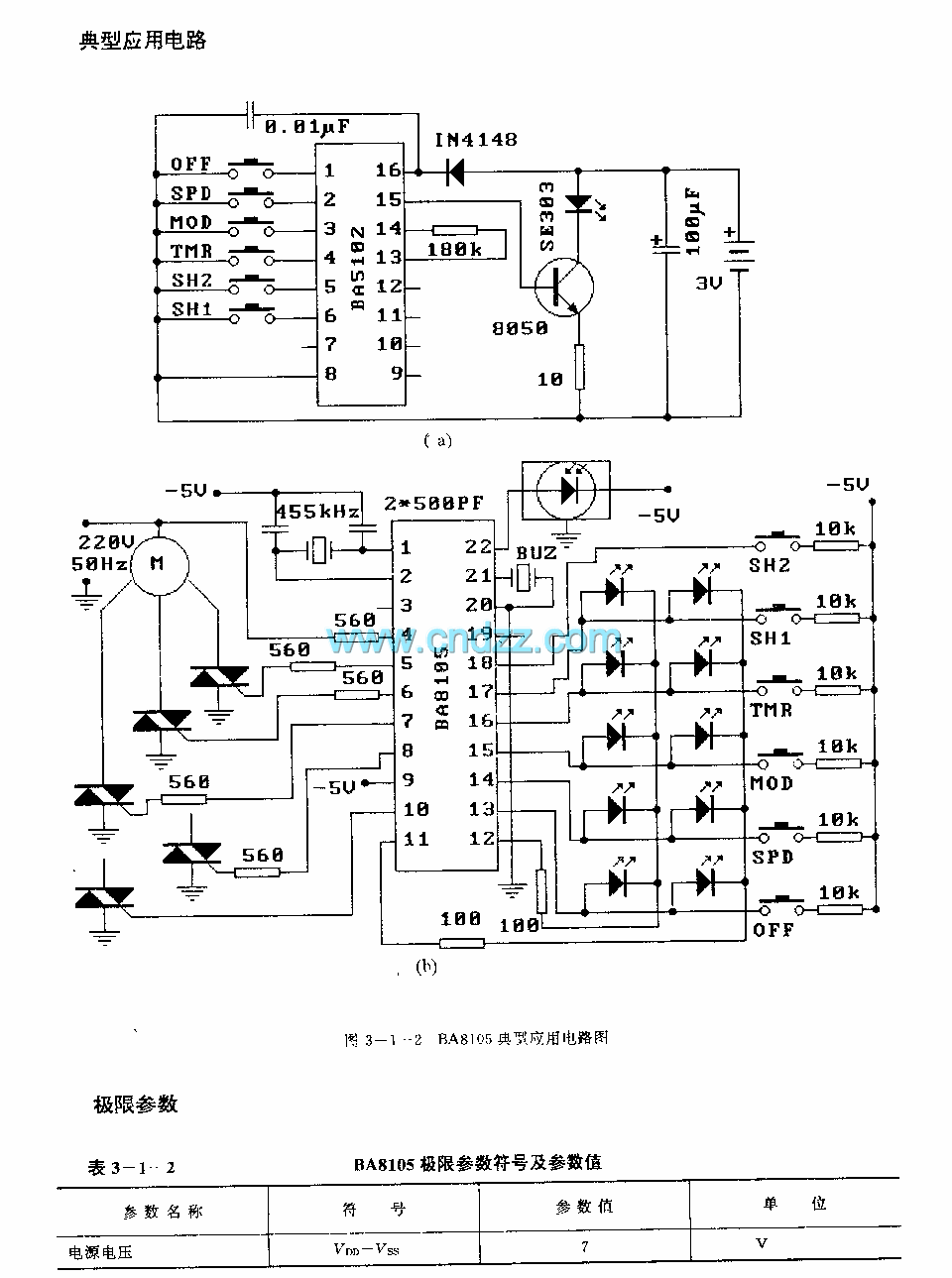

BA8105 is a infrared remote control receive control integrated circuit applied to fans. In Combination of with BA5102, can realize channel infrared remote control.Technology characteristic and functionleakage trigger design can protection controlled silicon and reduce interference.Mis-trigger key self-protectionStrong wind, middle wind or weak wind control and strong wind startup functionThree selections: common wind, natural wind or sleep windTiming mode: 0.5、1、2、4 hour four-flight progression time, or 1、2、4 hour three-flight not progression time.
