Auto wiper speed control circuit

Published:2011/5/4 19:34:00 Author:Christina | Keyword: Auto, wiper, speed control | From:SeekIC

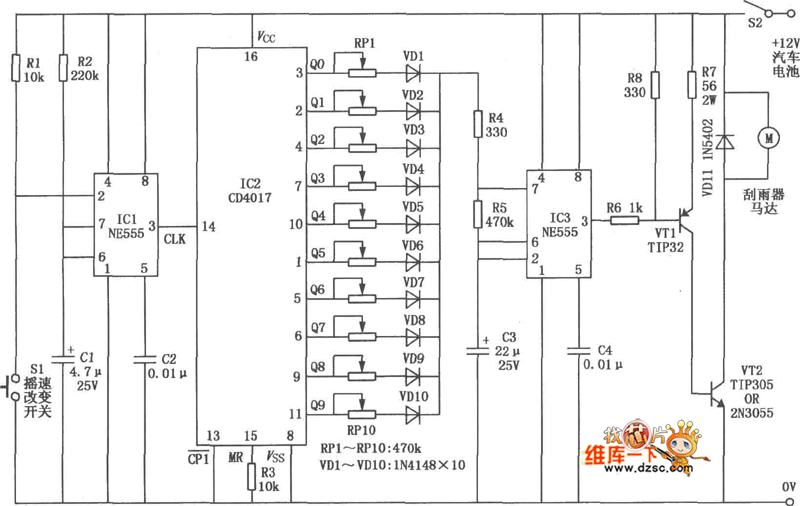

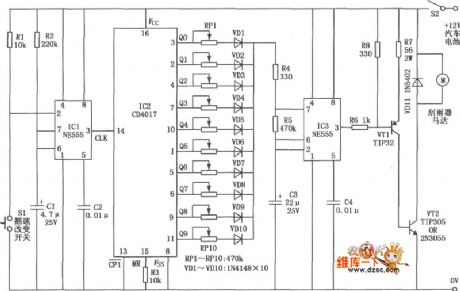

The auto wiper speed control circuit is as shown in figure. It controls the speed of wiper between the one to ten times per second, this device is flexible and can save power.
