Arbitrary pulse selection circuit diagram 2(CD40178、CD40106B)

Published:2011/7/14 22:51:00 Author:zj | Keyword: Arbitrary pulse, selection circuit diagram | From:SeekIC

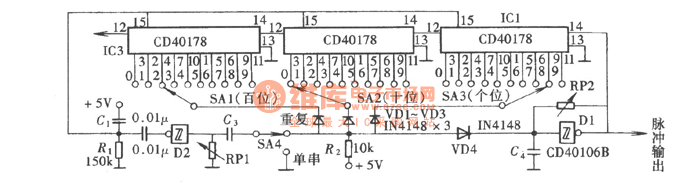

As shown in the diagram, the circuit structure is simple.The arbitrary pulse selection circuit can alsopreset the number of selected pulsesdirectly using decimalmethod.It is very convenient.
