WATER_ACTIVATED_ALARM

Published:2009/6/23 3:42:00 Author:Jessie | From:SeekIC

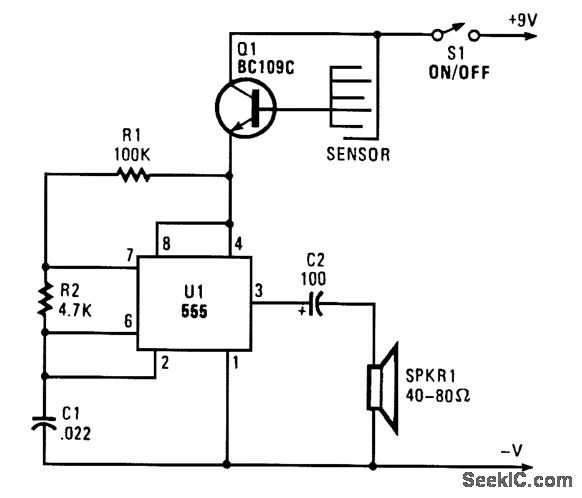

When sensor gets wet, it conducts, forward-biases Q1, and activates audio oscillator U1. A tone is heard from the speaker.
