TEMPERATURE_ALARM

Published:2009/7/7 2:34:00 Author:May | From:SeekIC

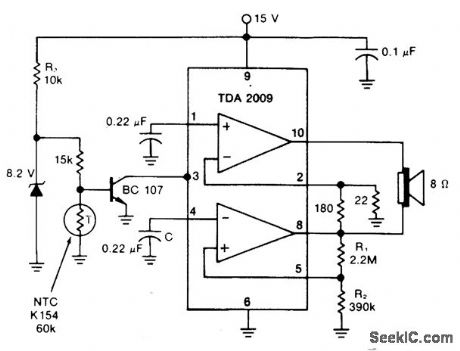

The mute pin of this dual audio amplifter is so used as the trigger for a one chip high-temperature alarm. One-half of the IC is connected as an oscillator and the other boosts the audio alarm outputs to 10W.
