SHORT_CIRCUIT_ALARM

Published:2009/7/9 23:32:00 Author:May | From:SeekIC

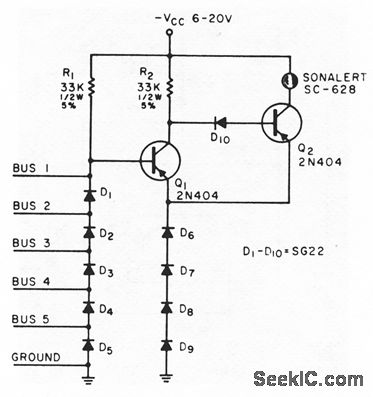

Sounds an alarm if a short occurs between any two of five different voltage buses or between any bus and ground.Used in checking complicted point-to point backplane wiring for computers,to detect wiring errors or solder splashes.-J.J.Russo,Short-Circuit Alarm,EEE,13:6,p 66-68.
