SELF_LATCHING_BURGLAR_ALARM

Published:2009/7/9 21:31:00 Author:May | From:SeekIC

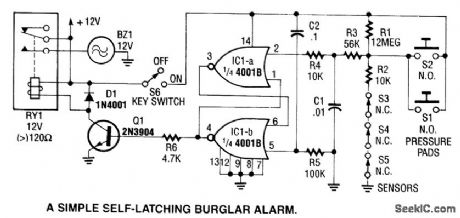

This alarm uses IC1A and IC1B as a latch. When sensors S1 through S5 activate, IC1A turns on and forces IC1B to cut off. Q1 drives RY1.
