PRINTER_ERROR_ALARM

Published:2009/7/9 23:12:00 Author:May | From:SeekIC

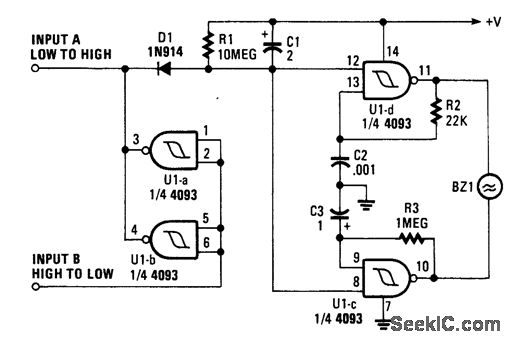

When a printer is shut down, this alarm sounds an alarm. The input can be either a high-to-low or low-to-high transition. This can be a logic level that corresponds with the printer being on or off. The oscillator produces an interrupted (on-off) tone.
