Published:2012/9/10 21:42:00 Author:Ecco | Keyword: Motion Alarm | From:SeekIC

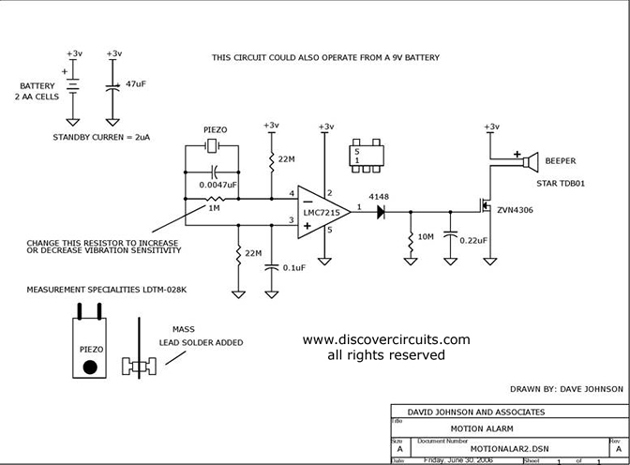

Using a piezoelectric device, this circuit will activate a beeper whenever the circuit is moved. It could be used as an earthquake alarm.
Source: discovercircuits
