MULTIPLE_INPUT_ALARM

Published:2009/7/9 23:44:00 Author:May | From:SeekIC

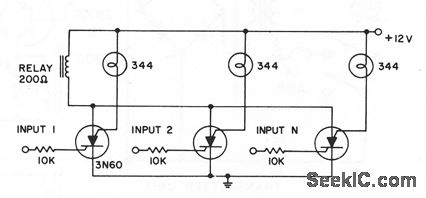

Any of several inputs will pull in common alarm relay, with corresponding lamp giving visual indication of triggered circuit. For higher-current laps, use 3N81 silicon controlled swilches.- Iransistor Manual, Seventh Edition, General Electric Co., 1964, p 425.
