LOW_CURRENT_SIMPLE_CMOS_ALARM

Published:2009/7/9 4:39:00 Author:May | From:SeekIC

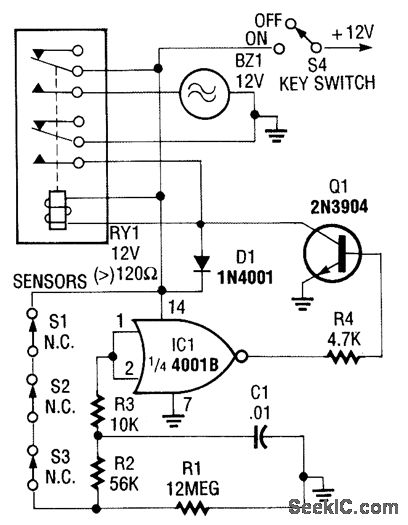

This CMOS-aided alarm draws only 1μA standby current. An open sensor allows IC1 to bias Q1 on, activating RY1.
