LIGHT_BEAM_ALARM_PREAMPLIFIER

Published:2009/6/14 22:53:00 Author:May | From:SeekIC

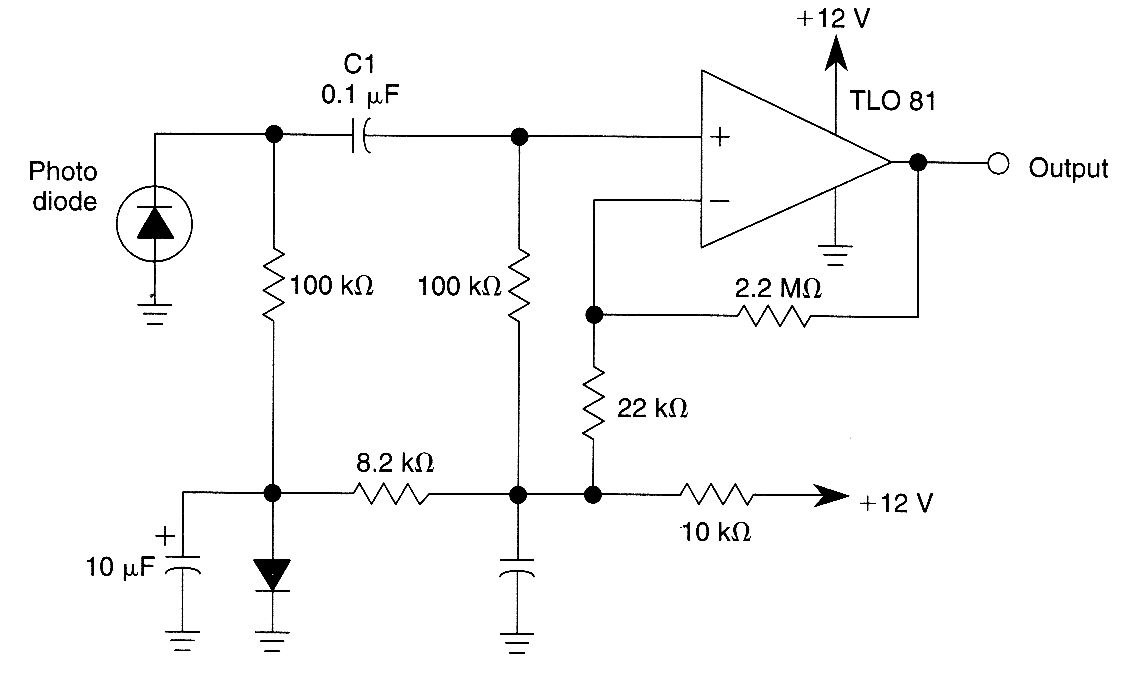

This circuit can be used for light beams to 20 kHz .The gain of the operational amplifier is set for a 40-dB gain.
