House Alarm Loop Circuit

Published:2012/9/11 21:29:00 Author:Ecco | Keyword: House Alarm , Loop | From:SeekIC

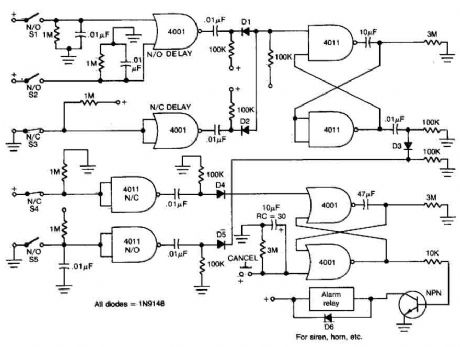

This circuit offers open and closed loop contacts (switches 1,2,3) that triggers the alarm ON and stays ON for 5 -10 minutes. The trigering delay (entrance/exit) is 27 seconds. This simple alarm circuit Has also a cancel button for reseting the circuit to stand-by mode again.
