EXIT_DELAY_FOR_BURGLAR_ALARMS

Published:2009/6/14 22:16:00 Author:May | From:SeekIC

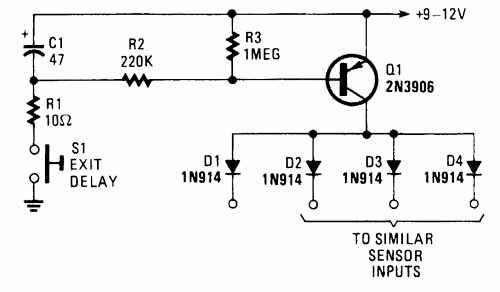

Depressing S1 charges C1 to the supply voltage. This biases Q1 on via bias resistors R2 and R3. A voltage is available for the duration of the delay period, to hold off the alarm circuit.C1 can be increased or decreased in value to al-ter the delay times.
