DUAL_CLOCK_CIRCUIT_FOR_STEPPER_MOTORS

Published:2009/6/18 23:41:00 Author:May | From:SeekIC

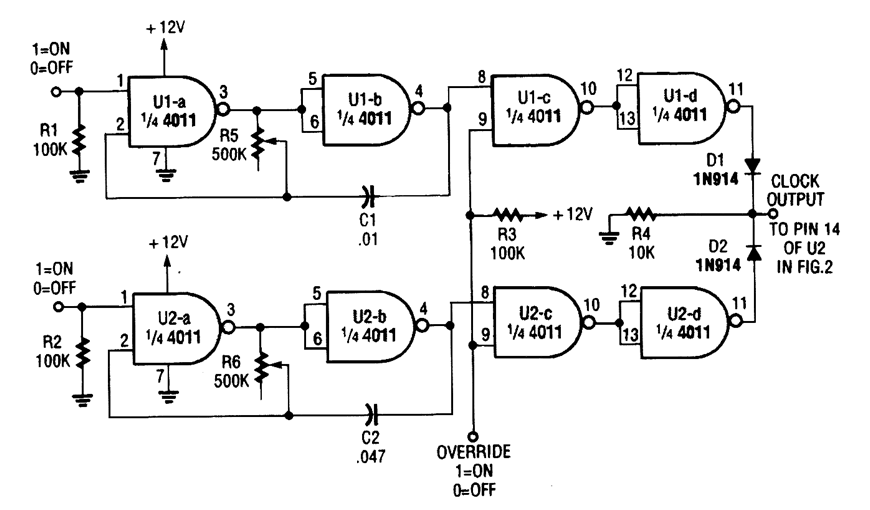

This oscillator can be used to drive a stepper motor circuit at two preset speeds with override to shut the motors off.
