CLOSED_LOOP_ALARM

Published:2009/6/14 21:40:00 Author:May | From:SeekIC

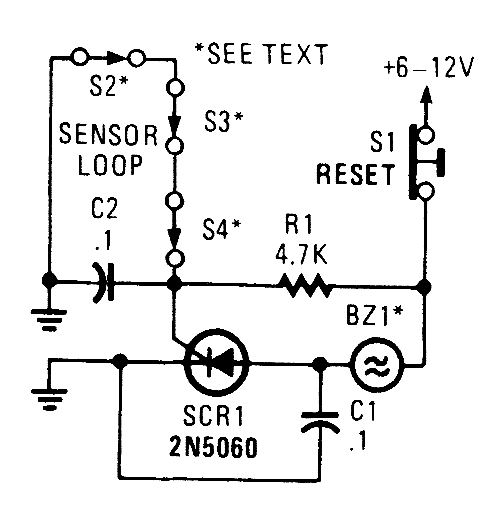

A string of three series-connected, normally closed switches are connected across the gate of an SCR. When one opens, the SCR triggers via R1, sounding an alarm. The alarm should be of the noninterrupting type.
