CIRCUIT_BREAKING_ALARM

Published:2009/6/30 2:04:00 Author:May | From:SeekIC

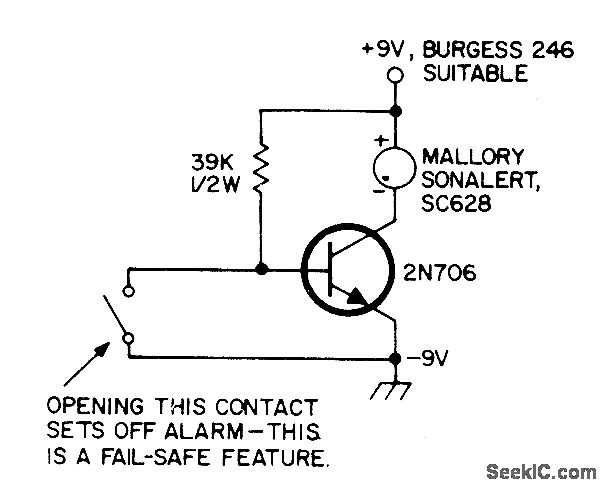

Operates from small 9-V battery, making it independent of AC power failure. Opening of switch or equivalent breaking of foil conductor removes ground from base of transistor, to energize alarm.-Circuits, 73 Magazine, April 1973, p 132.
