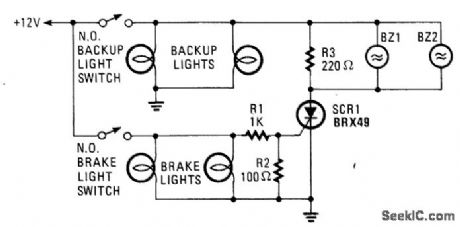

BACK_UP_ALARM

Published:2009/7/9 4:40:00 Author:May | From:SeekIC

The brake lights of the automobile trigger this circuit on and off. This saves the annoyance of the alarm when it is not needed.
