Advanced drive circuit diagram

Published:2011/7/20 5:34:00 Author:nelly | Keyword: drive | From:SeekIC

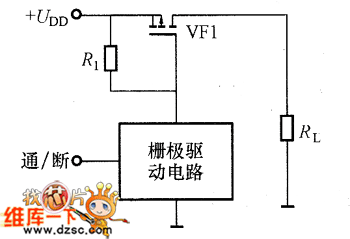

As shown in the figure, it is the advanced drive circuit which is composed of P channel power MOSFET, one terminal of the load is ground connection, it does not require bootstrap circuit, so it is mainly used in lower voltage switch circuit.
