A_C_RELAY_DRIVE

Published:2009/7/24 4:28:00 Author:Jessie | From:SeekIC

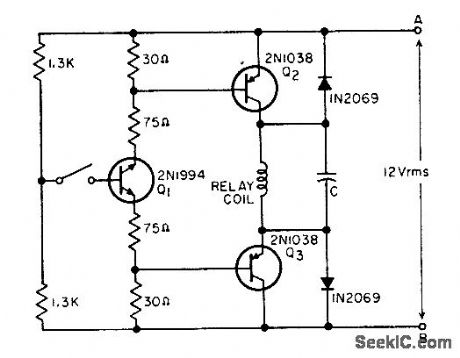

Drives 12-V ac relay with transistors triggered by low direct current of pair of switch contacts. Can drive any a-c relay rated in voltage up to breakdown rating of transistors.-R. K. Walters, Transistor Driven AC Relay, EEE, 11:2, p 25-26.
