AUTOMOTIVE_BURGLAR_ALARM

Published:2009/6/22 23:35:00 Author:Jessie | From:SeekIC

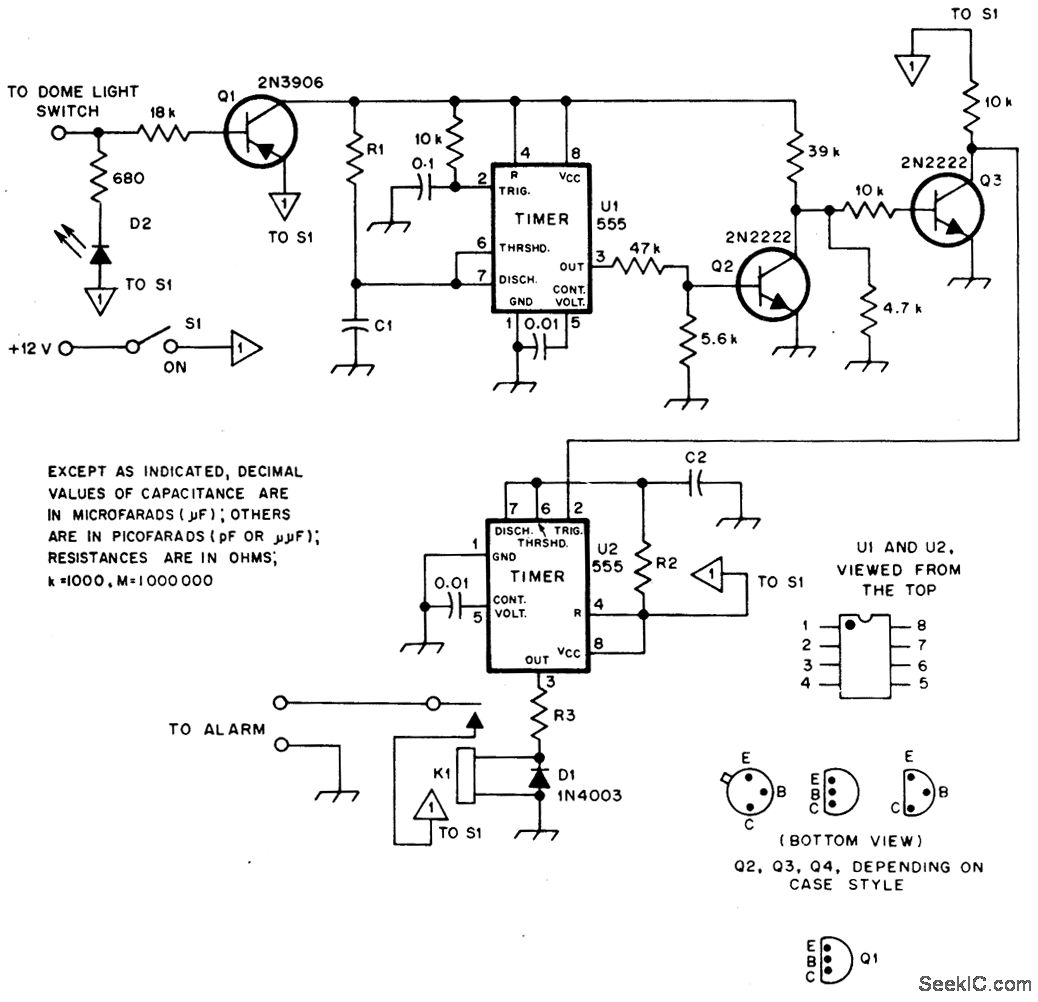

Alarm triggers on after a 13 second delay and stays on for 1-1 1/2 minutes. Then it resets automatically. It can also be turned off and reset by opening and reclosing S1.
