AUTOMATIC_REMOTE_RHYTHM_CONTROL

Published:2009/7/1 20:52:00 Author:May | From:SeekIC

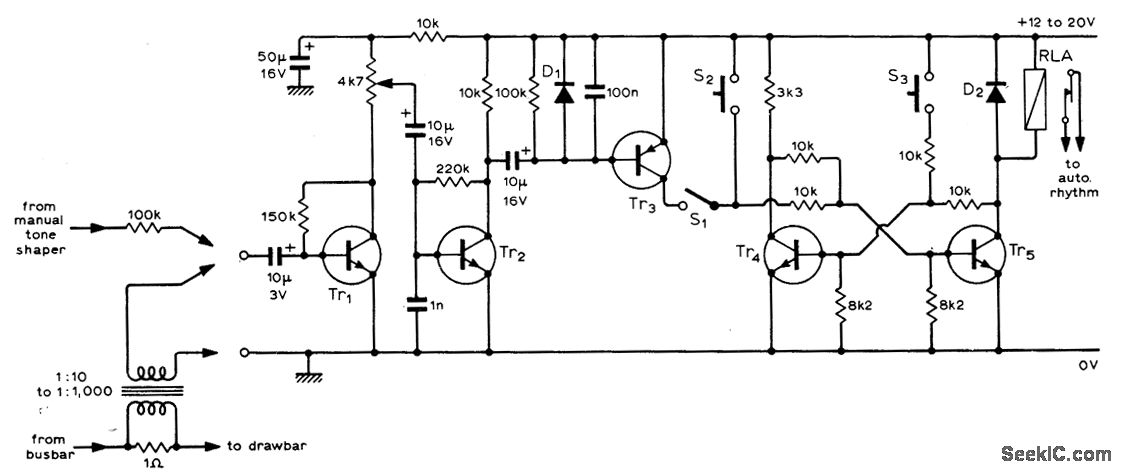

When added to electronic organ，circuitis activated by audio signal from lower manual or pedal, to initiate start of rhythm accompaniment. High-impedance input conhection through 100K ts made to toneshaper output, and transformer connection is used with electromechanical Hammond organ. Transistorand diode types are not critical. If S1 is closed, current passes through to Tr5 and triggers bistable that pulls in relay，S2 and S3 are usedfor manualstart and stop of rhythm．-κ .B.Sorensen.Touch Startof Automatic Rhythm Device，Wireless World.Oct.1974.p381.
