ALTERNATING_ON_OFF_CONTROL

Published:2009/6/24 3:21:00 Author:May | From:SeekIC

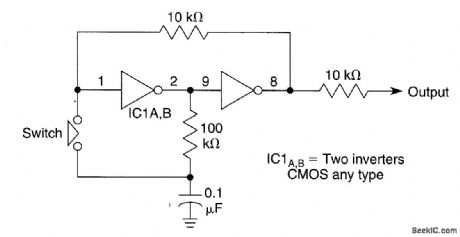

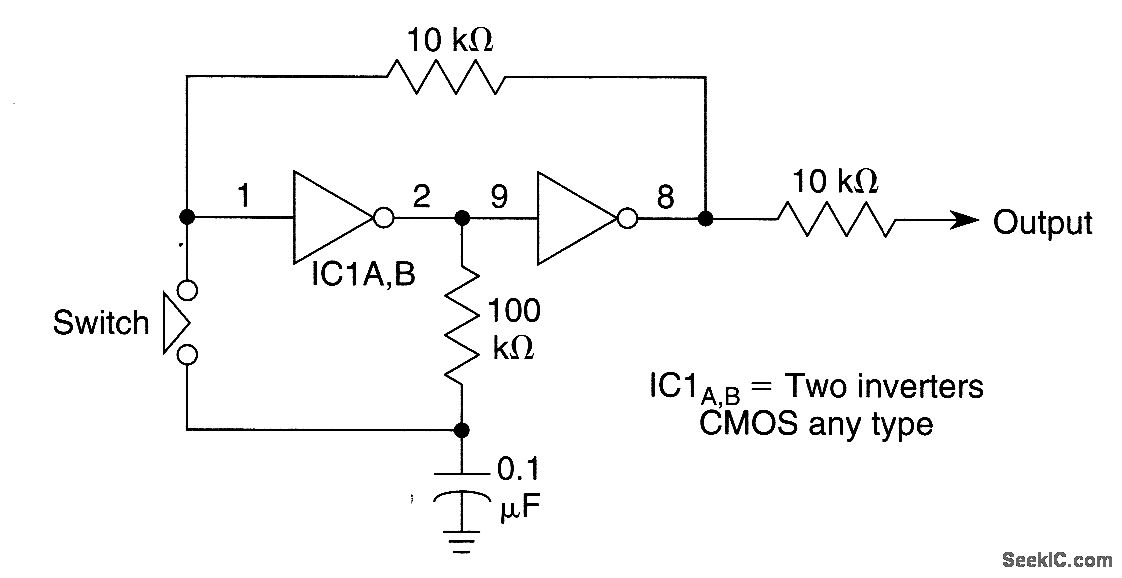

When the switch is closed, it causes a change in the state of pins 1 through 8. This will provide a toggle flip-flop action.
