AGC_WITH_DIODE_T_NETWORK_VARICAP

Published:2009/7/16 2:48:00 Author:Jessie | From:SeekIC

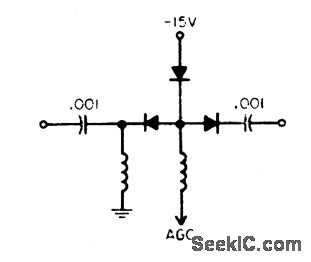

Voltage-controlled capacitor circuit minimizes effect of shunt capacitance, thus reducing resonance peaks and preventing regeneration, but insertion loss is high (8 db).-W. A. Rheinfelder, Designing Automatic Gain Control Systems, EEE, 13:1, p 53-57.
