AF_POWER_OSCILLATOR

Published:2009/6/24 4:15:00 Author:Jessie | From:SeekIC

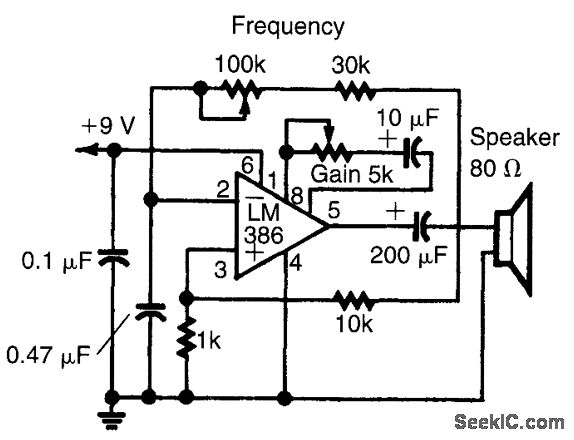

An LM386 audio power IC is set up as a feedback oscillator. Any supply from 6 to 12 V can be used. The circuit can drive a loudspeaker.
