ADJUSTABLE_SCHMITT_TRIGGER

Published:2009/7/21 9:21:00 Author:Jessie | From:SeekIC

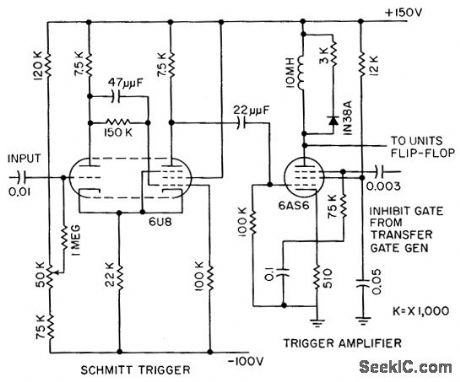

Accepts either sine waves or pulses. Adjustable input level control allows trigger to occur on any desired portion of input waveform. Amplifier stage drives flip-flop of units decade counter directly.-R. W. Wolfe, Decode Decimal Counter Speeds Printed Readout, Electronics, 31;3, p 88-90.
