AC_LINE_MONITOR

Published:2009/7/14 22:33:00 Author:Jessie | From:SeekIC

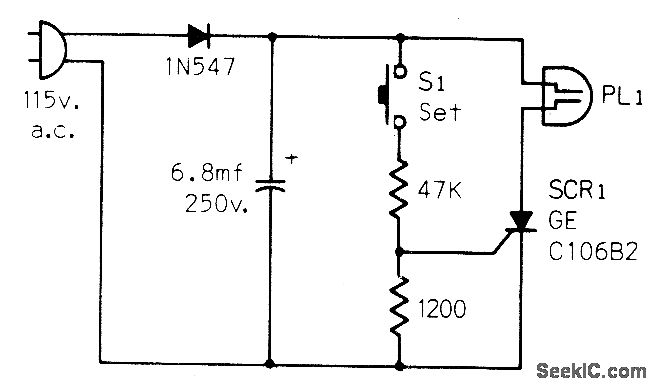

Detects AC line failures of any duration and turns off neon lamp PL1 to indicate that clocks require resetting. Circuit is plugged into AC outlet, and S1 is pushed to trigger SCR on and send current through lamp.-J. R. Nelson, Some Ideas for Monitoring A.C. Power Lines, CQ, July 1973, p 56.
