ACCELERATION_SENSING_SWITCH

Published:2009/7/22 1:46:00 Author:Jessie | From:SeekIC

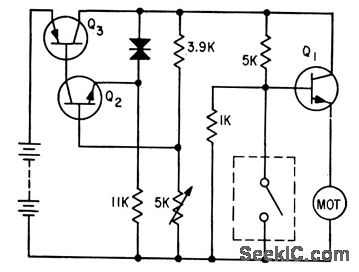

Sensing switch controls Q1, which provides power for accelerometer motor. Q2 and Q3 provide damping by current limiting, to increase ac curacy by one order of magnitude.-F. W.Kear, Dynamic Fluid Switch Senses Acceleration, Electronics, 34:38, p 64-67.
