8_channel_sequential_differential_mux_demux

Published:2009/7/23 22:18:00 Author:Jessie | From:SeekIC

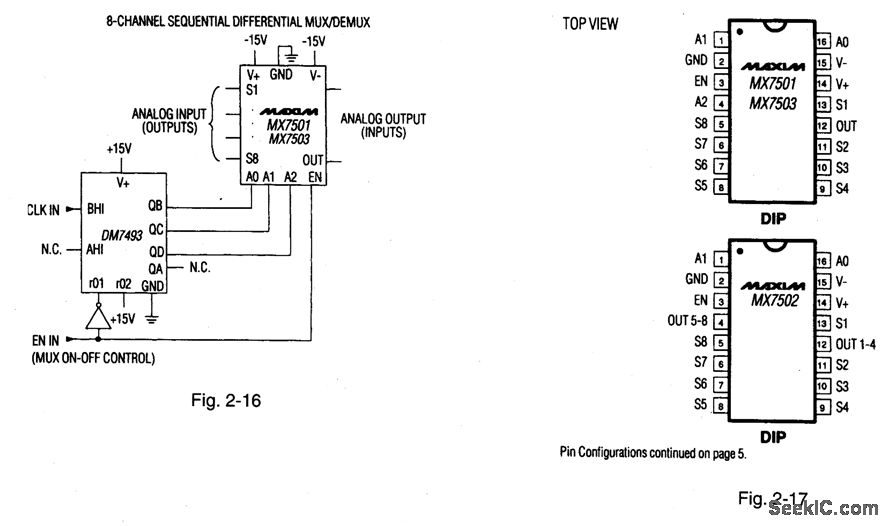

Figures 2-16 and 2-17 show a typical application circuit and pin configurations, respectively, for the MAX7501/02/03. In this circuit, the IC acts as a multiplexer or demultiplexer by inter-changing the analog inputs and outputs. Each channel is sampled in sequence by signals from a DM7493 under the control of an external clock. MAXIM HIGH-RELIABILITY DATA Book, 1993, P.1-47.
